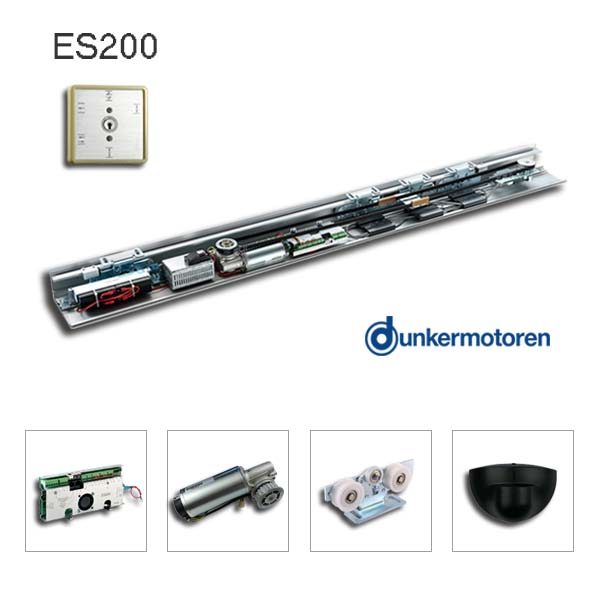

ES200 Automatic Sliding Door Opener
(Automatic sliding door opener kit set)
- Dorma ES 200 compatible
- Dunkermotoren GR 63×55 30V motor
- Full series universal parts & hardware
- Easy installation & less maintenance
ES200 automatic door operator – Dorma Compatible System
◆MODULAR DESIGNED & ALL PURPOSE SLIDING DOOR OPENER
ES200 automatic sliding door is extensively used in common civil buildings. Its fashion design and reliable performance meet the most requirement of modern creativity and intensive operation.
◆UNIVERSAL PARTS AND HARDWARE
ES200 door operator has the same functions and performance as Dorma ES 200. It is very easy to install and get technical support. Original Dunkermotoren motor offers extremely reliable performance and low cost maintenance. ES200 door operator provides high efficiency and neat access control solution to those situations like offices or commercial buildings, banks, restaurants, retail stores, schools, hospitality, recreation centers and other public sites.
- Running automatically, quietly and smoothly (Off, Automatic, Permanent open, Partial open, Exit only)
- Up to 3.0 meter opening width, single sliding or double sliding door
- Microprocessor controls sliding speed and other special functions programmable
- Modular design, easy for mounting, service and maintaining
- Custom build feasibility according to customer requirement
- Standardized mechanical components for all operators, including driving and controlling module
- Optional battery pack for emergency escape route solution

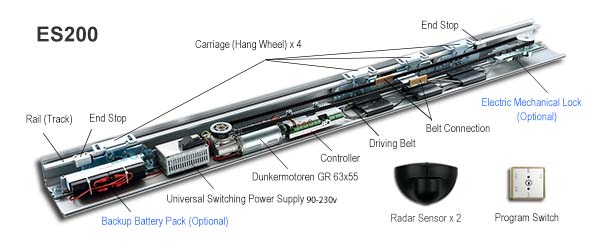

ITEMS CHECK LIST
(Included in standard package)
- Dunkermotoren GR 63X55 30V motor x 1
- ES200 controller (Basic module) x 1
- Universal switching power supply (90-230v) x 1
- Carriage (Trolley head set) x 4
- 5 positions program switch x 1
- Belt connection x 2
- Return pulley (With belt tension) x 1
- End stop (End buffer) x 2
- Microwave radar sensor x 2
- Driving toothed belt (6m/8m/10m) x 1
- Rail profile (4.15m/5m/6m) x 1
(Not included in the package)
|Ship by ocean||
Full length rail packed in cartons or wooden cases.
|Ship by air||
Rail cut into 2pcs packed in cartons.
