EC100 (SLM) Drive Unit

Motor drive unit assembly of EC100(SLM) automatic sliding door, equipped with Dunkermotoren motor.

(Applicable on Kaba SLM and Gilgen SLM model automatic sliding doors and telescopic doors)

  • Dunkermotoren GR 63×55 60V
  • Worm gearbox SG80K
  • Gear ratio 7:1 OR 10:1


SKU: SLM-DRIVE Category: Tags: ,
(1 customer review)


EC100 (SLM) Automatic Door Drive Unit (SLM motor assembly)

Modular EC100 automatic door drive unit equipped with an original Dunkermotoren GR 63x55 60V motor and AC power supply (transformer).

The motor and power supply are designed to be sealed in a solid iron gearbox, giving easy moving and assembly, better shield from attacking, better dust proof and perfect connection between motor and power source.

Powerful torque and flexibility makes it highly fulfilling EC100 or Kaba SLM/Gilgen SLM series customization of linear sliding doors, telescopic doors or curved/circular doors.

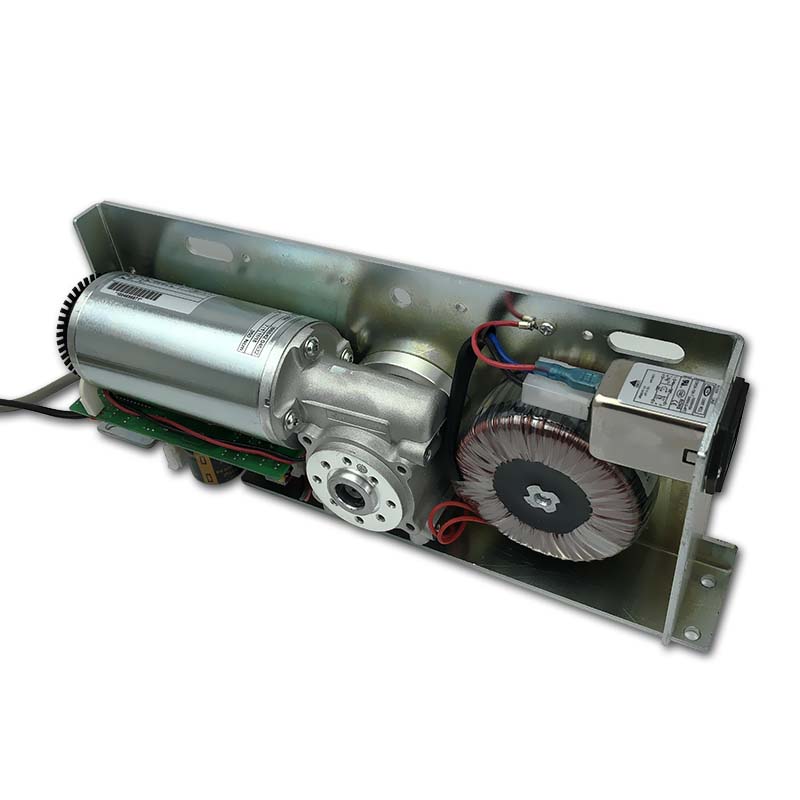

Dunkermotoren GR 63x55 60V / Worm Gearbox SG80K

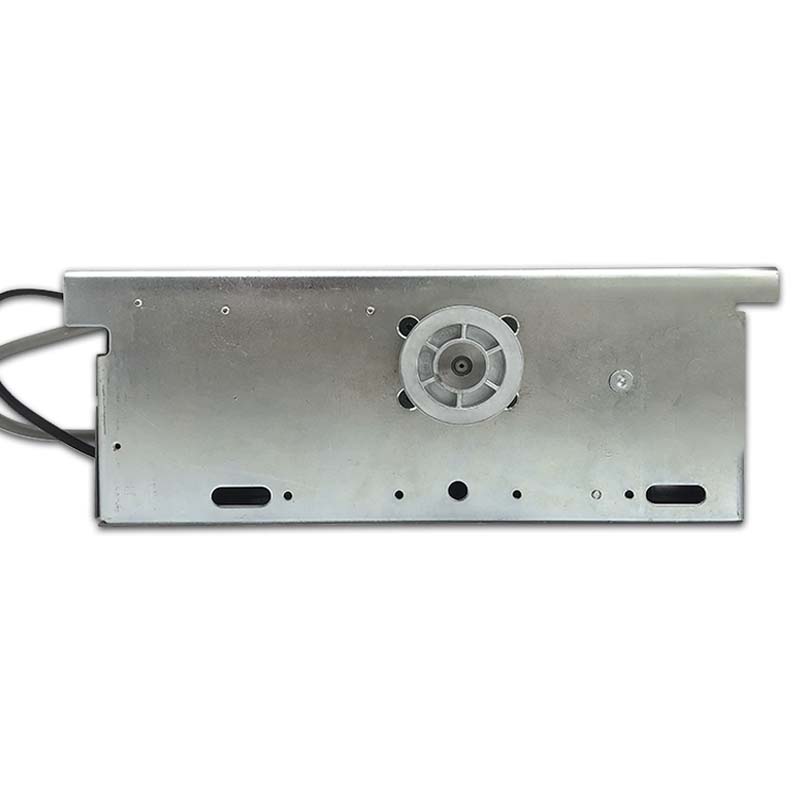

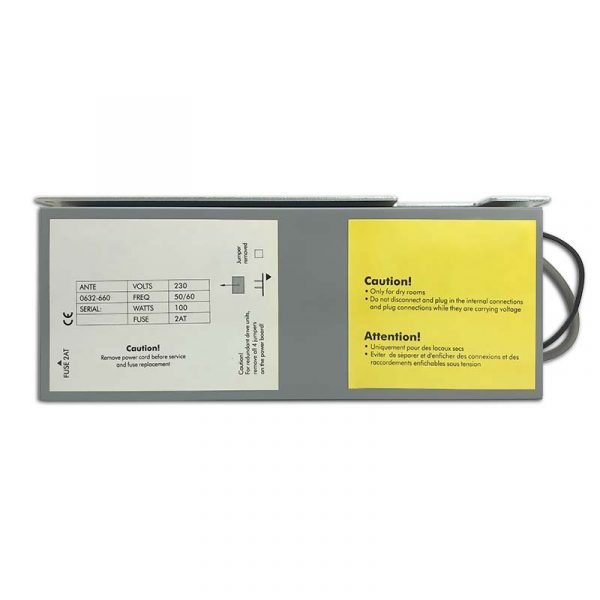

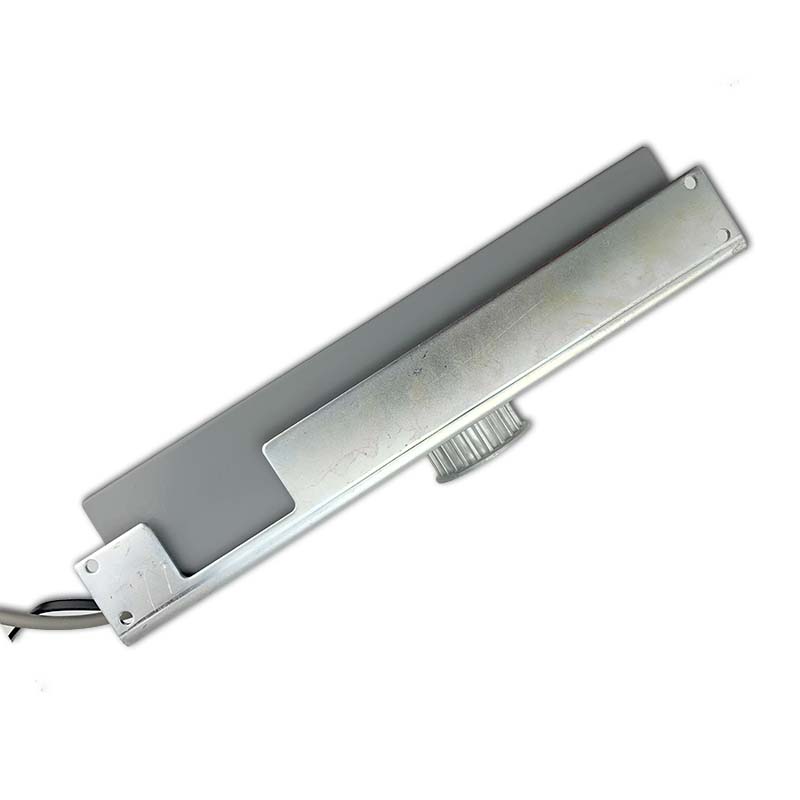

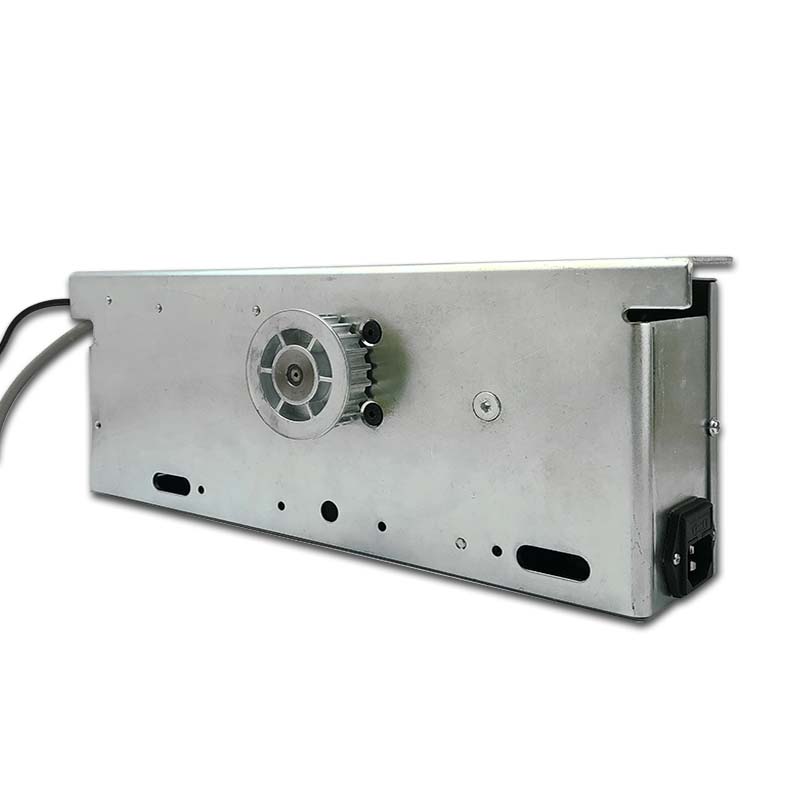

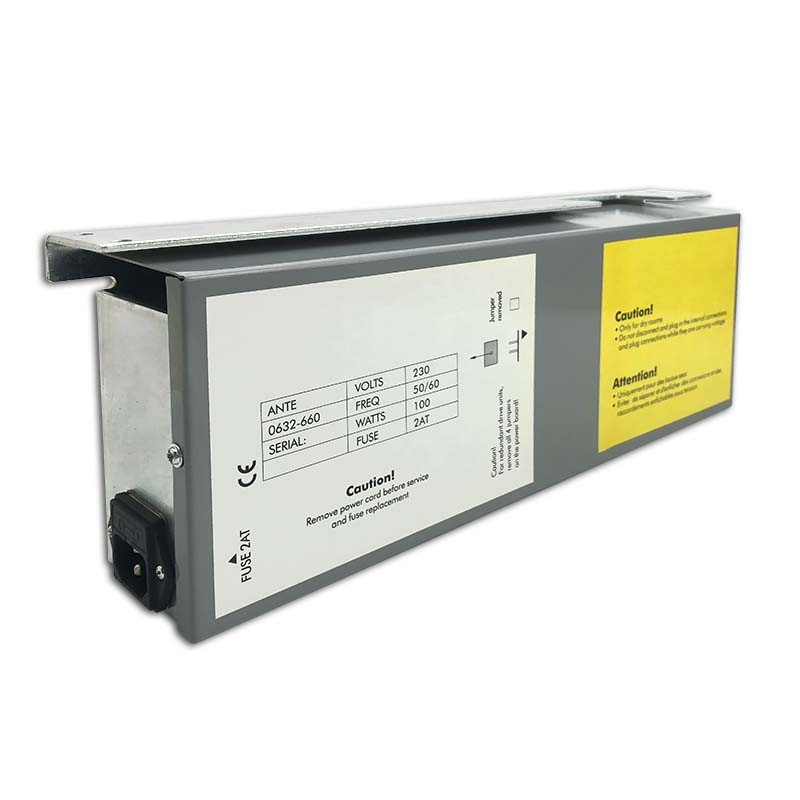

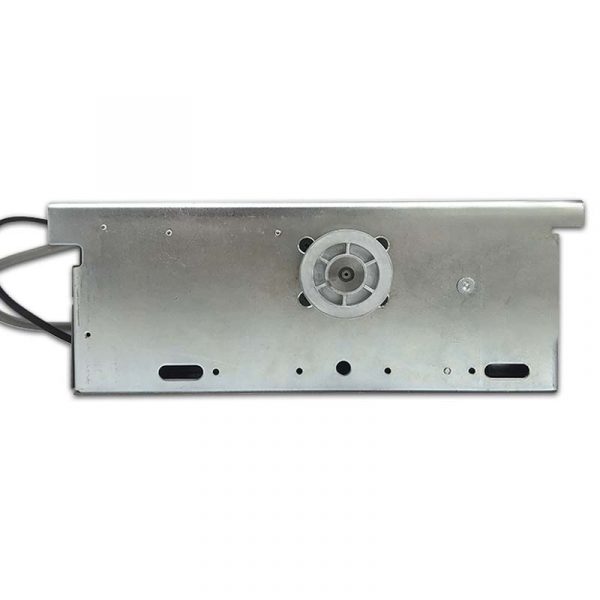

EC100 Gilgen SLM motor assembly
EC100 Gilgen SLM driving motor

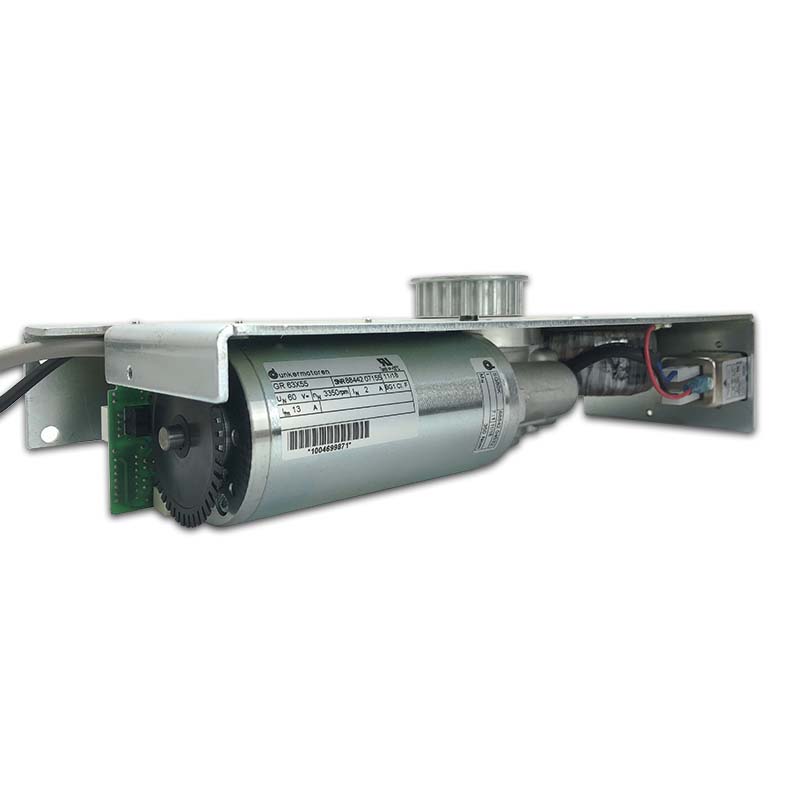

Dunkermotoren GR 63x55 60V
EC100 Gilgen SLM motor
EC100 Kaba SLM/Gilgen SLM motor assembly
EC100 Gilgen SLM motor Dunkermotoren GR 63x55 60V

Remark: Default power supply voltage is 230v/50Hz,  can be customized as per customer specification.
