Automatic Telescopic Sliding Door
(Automatic telescopic door opener kit set)
- Kaba SLM & Gilgen SLM compatible profile and hardware
- Dunkermotoren GR 63×55 motor, dual motor driving mode available
- Double overlapped or triple overlapped sliding
- Driving & controlling by either EC100 (SLM) or ES200 system
- Highly customized for super heavy load commercial telescopic doors.
Telescopic Sliding Door Operator
Intelligent microprocessor control automatic telescopic door system, which uses the compatible Kaba/Gilgen SLM profile and hardware, the control and driving system can be either EC100(SLM) or ES200.
To maximize the opening width, this automatic door control system has 2 or 3 overlapped door panels which are fixed on 2 or 3 sliding guide ways (rails) and move to same direction. Compared to regular sliding door, it tremendously increases the clear door opening.
- Intelligent microprocessor, automatic self-diagnostic, self-monitoring system
- Double overlapped or triple overlapped sliding are available
- Optional dual motor driving mode, ability of driving heavy loaded telescopic door
- Gilgen SLM compatible profile and hardware
- Super quiet and smooth, high efficiency brush DC Dunkermotoren motor
- Expansion interface for backup power and emergency control
- Up to 4 x 100kgs door panel under dual motor driving mode
- Customized driving system available for super heavy telescopic doors

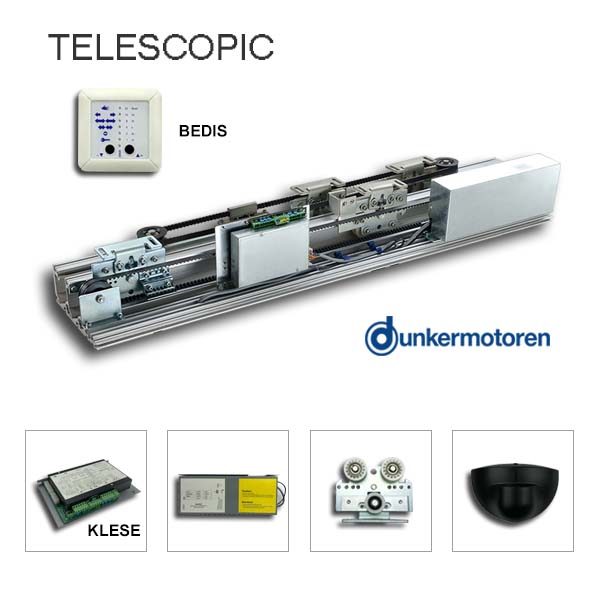

ITEMS CHECK LIST (Double overlapped)
(Included in standard package)
- Motor Drive Unit x 1
(Dunkermotoren motor GR 63X55 & transformer)
- KLESE control box x 1
- Carriage (Trolley head set) x 8
- BEDIS control panel x 1
- Belt connection x 4
- Return pulley x 2
- End stop (End buffer) x 4
- Microwave radar sensor x 2
- Driving belt (6m/8m/10m) x 1
- Double overlapped Rail profile (4.15m/5m/6m) x 1
(Telescopic doors can be customized and check list may vary from different specification.)
(Not included in the package)
PRODUCT VIDEO DISPLAY
COMMERCIAL SUPER HEAVY TELESCOPIC DOOR PROJECT
|Ship by ocean||
Full length rail packed in cartons or wooden cases.
|Ship by air||
Rail cut into 2pcs packed in cartons.
