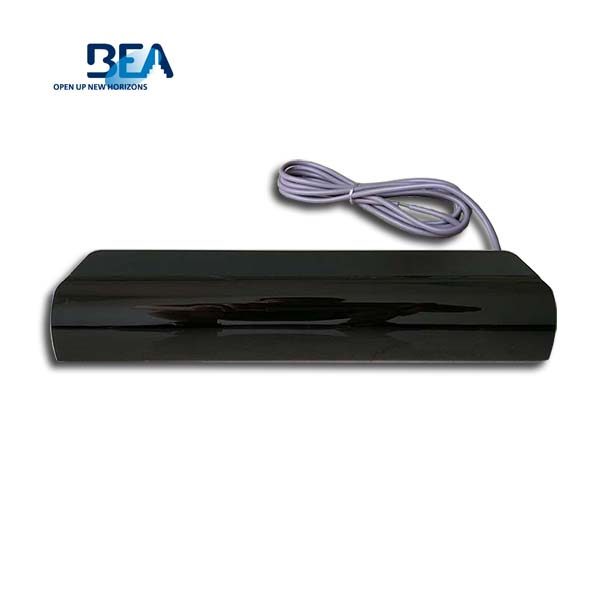

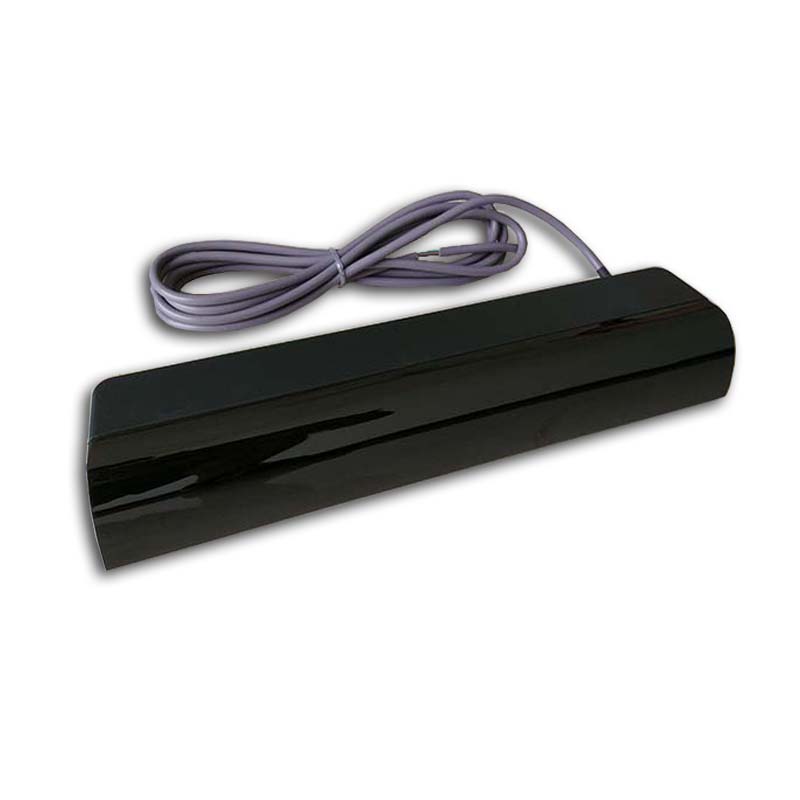

BEA C8 (ZENSAFE) Radar & IR Combo Sensor

BEA C8 (BEA ZENSAFE) microwave radar motion detect & active infrared presence detect automatic door combination sensor, made by BEA (APAC China).

  • Microwave doppler radar sensor
    (Motion detect for door opening activation)
  • Active infrared safety sensor
    (Presence detect for safety protection)
  • Mounting height: 1.8m – 3.0m

BEA C8 (ZENSAFE) Radar & IR Combo Sensor Manual

$120.00

SKU: BEA-C8 Category: Tags: , ,
(1 customer review)

Description

BEA C8 / BEA ZENSAFE Automatic Sliding Door Opening & Safety Sensor (Microwave Radar Activation & Active Infrared Safety Dual Mode Combination Sensor)

Dual mode sensor microwave radar IRIn commercial automatic entrance sensing solutions, sliding door sensors are mostly necessary for all types of automated single or double sliding doors, glass doors, aluminum sliding doors. Photocell doors and electric sliding doors are widely used in so many public buildings, like airports, hospitals, administrative buildings, shop fronts, and museums…., they ensure the convenience and safety of pedestrian moving in, out, and through a building. By detecting the motion of people approaching the entrance or people’s presence near the door, this smart BEA C8 / BEA ZENSAFE motion detector triggers the door’s opening and function as a safety sensor to improve the pedestrian experience of using sliding doors and avoid unnecessary accidents.

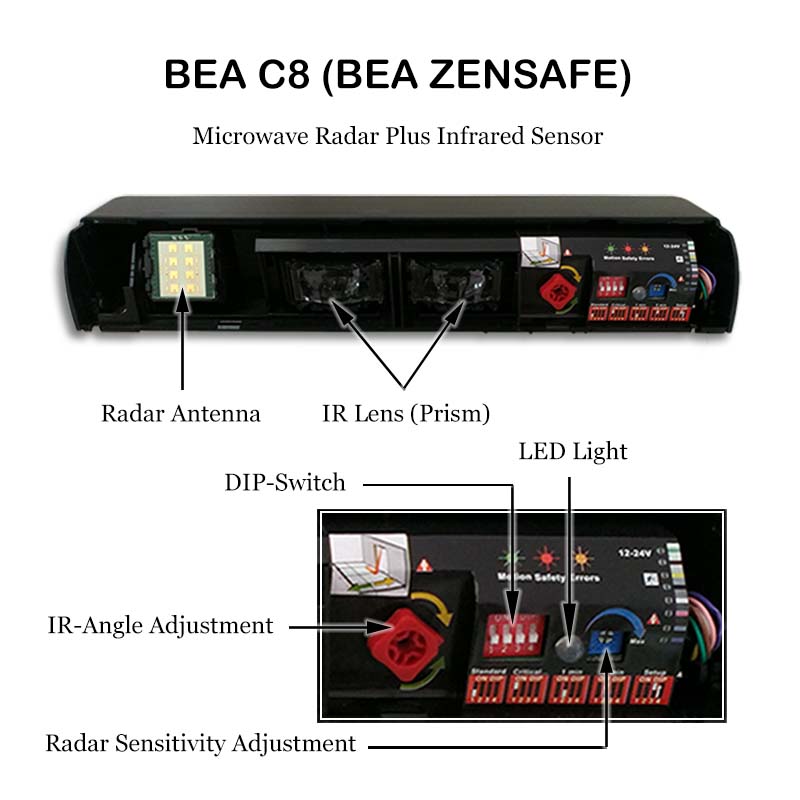

BEA C8 / BEZ ZENSAFE sensor legend

SPECIFICATION

  • Supply voltage: 12V-24V AC +/-10%, 12V-30V DC 0%/+10%
  • Power consumption: <3W
  • Mounting height: 1.8m – 3.0m
  • Temperature range: -25°C – +55°C
  • Degree of protection: IP54

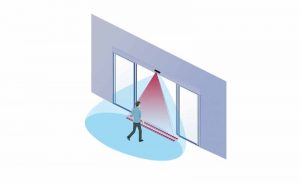

Microwave doppler radar and active infrared with background analysis dual modes combination BEA C8 / BEA ZENSAFE sensors come with both unidirectional radar technology for smooth energy-efficient door activation and monitored active infrared technology to secure the threshold area.



With this combined function of opening activation and protecting users from being clamped by door panels when automatic door closing, no need to install a safety beam sensor on the door frame other than a radar sensor on the top.

BEA automatic door sensor specification
Motion and Presence Detection Technical Parameters
Motion detect - door opening
Microwave motion detect
Safety active infrared presence detect
Active infrared presence detect

Additional information

Weight 0.4 kg
Brand

BEA
