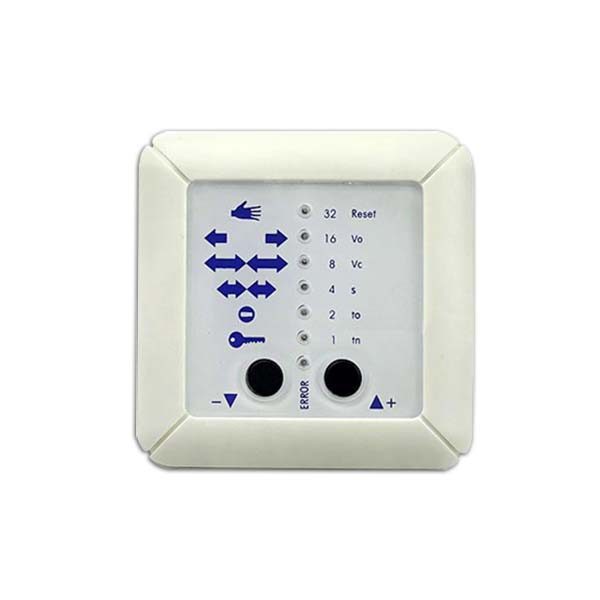

EC100 (SLM) BEDIS Control Panel

Program switch (BEDIS control panel) for EC100 automatic sliding door opener, a programming switch which is universal and compatible with Kaba / Gilgen SLM.

$50.00

SKU: BEDIS-CONTROL-PANEL Category: Tags: ,

Description

BEDIS control panel – Universal for EC100 & Kaba/Gilgen SLM

(EC100 / SLM drive unit can work without BEDIS control panel or with BEDIS control panel)

BEDIS programming control panel

Without the BEDIS control panel

  1. The following program positions can be selected via inputs 21 and 22 EXIT/AUTOMATIC (summer)/
    AUTOMATIC (winter).
  2. Reset via terminal 25 and 26 (shorting a wire between #25 and #26 will reset doors) – (See diagram on KLESESLM control box).
  3. The BEDIS can be used as a temporary programming unit. After BEDIS has been connected or removed, a cold start (mains supply ON/OFF) must be made during which the programmed values are preserved.

With BEDIS control panel

  1. Via inputs 25 and 26 (patented 2-wire bus)

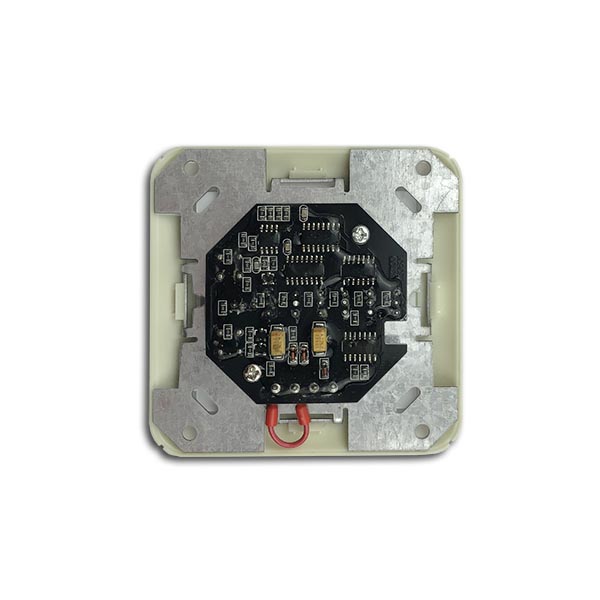

  2. The operation can be locked as follows: Using a switch (key, momentary contact, etc…) Connected to BEDIS terminals 3 and 4. (Note: if no switch is connected to terminals 3 and 4 on the BEDIS a jumper wire must be installed)
  3. By connecting a terminal or a personal computer (e.g. management system) terminal block J5 (terminals 1-4) this requires special software, consult factory.

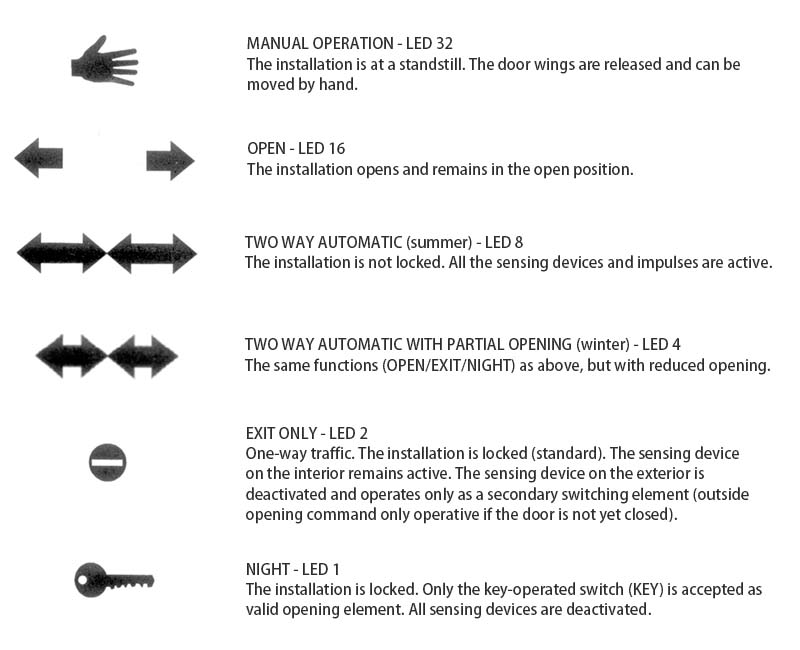

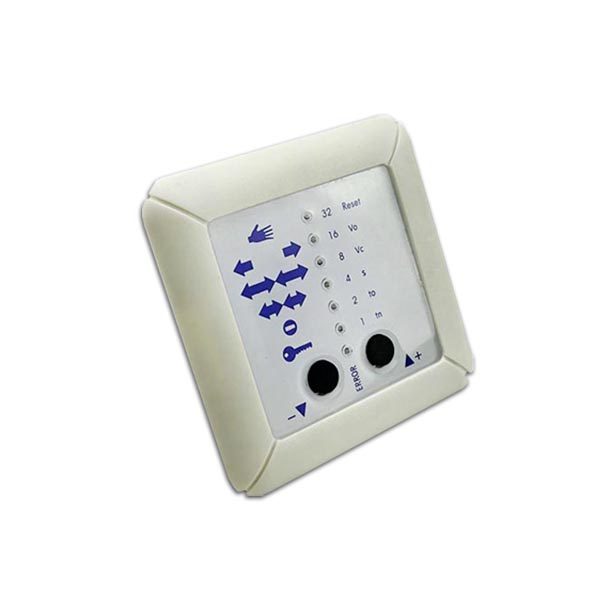

All the function can be identified and set via the BEDIS control panel. The numbering of the LED’s on the plate
corresponds to their binary value. The softswitch numbers and the error numbers are obtained by adding the numbers next to the LED’s which are lit.

Example: LED 16/4/1 are lit ->16+4+1 =21 -> softswitch /error no. 21

BEDIS control panel description

Communications with the Control Box unit are fail-safe and tamper-proof via a modern bus system (patiented two-wire line).

The BEDIS operates at 4 different levels:

  • 1st level = Operation functions (User level)
  • 2nd level = Setting functions (Must be set and left to ANSI Standards)
  • 3rd level = Programming functions
    At this level, settings can only be made by expert technicians (automatic door after-sales
    service, authorized distributors, or consulting manufacturer)
  • 4th level = Malfunction indication error

For detail operations from 1st level to 4th level and all functions of BEDIS control panel(program switch), please refer to EC100 / SLM operation & installation manual.
